A protection switchboard with manual or motorised circuit breakers mounted on the enclosure with option of Top or Bottom-entry opening for power cables.
All connections from alternator to generator circuit breaker within the sound proof enclosure pre-assembled to reduce work at site.

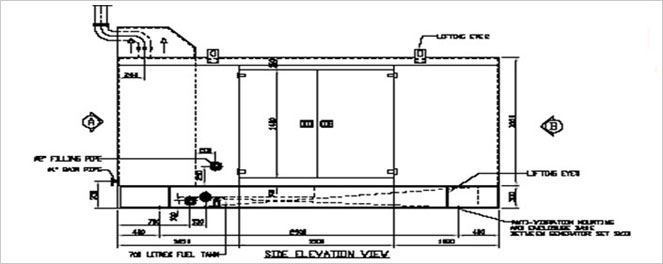

Our Acoustic treated Enclosure produces a very compact, sound-proofed generating set that is fully independent with skid based Diesel day tank and integration of all operating peripherals
Sound proofing levels:-
| • |
80dB(A) @ 1m (80% load) |
|
| |
|
|
Salient features of our Genset Enclosure:
| • |
Double wall doors for easy access during maintenance |
| • |
Skid based fuel tanks up to 8hrs standby |
| • |
Heavy duty steel based frame for placement of DG set |
| • |
Anti-corrosion treatment for utilisation under adverse weather conditions |
| |
Sound suppressing elements using sound absorbing foam , vinyl sheet for with outer layer for anti-droning |
| • |
Separate compartment for hot air discharge |
| • |
Epoxy primer coating with electro-galvanised plates and 2 coat epoxy finishing paint
|
|
| |
|
|
Engine control panel with Inteligen® Controller complete with Auto Mains Failure (AMF), protection, engine indications like Lube Oil pressure, Jacket water Temp etc.
|
| |
|
|
Use of COMap Microprocessor Controller:
| • |
Electrical Protection e.g OCEF, U/Voltage, Reverse Power etc |
| • |
Synchronising, Mains parallel, Load Sharing, Paralleling. |
| • |
Remote Access vis Internet, modem |
| • |
Modular and Compact |
|
| |
|
